--Building Solution Right Here for You.
 |
| Place of Origin: | Guangzhou,China |
| Brand Name: | APRO,OEM |
| Model Number: | AP-02201448 |
| Minimum Order Quantity: | 3 Square Meter |
|---|---|
| Price: | negotiation |
| Packaging Details: | foam layer and hard cardboard inside & wooden case outside which is suitable for container shipping. |
| Delivery Time: | 30-40 days for 10-100M2 , if more than 100 M2 need to be negotiated |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | More than 5000 square meter per month |
| Certification: | ISO9001 | Open Style: | Automatic |
|---|---|---|---|
| Door Material: | Aluminum Alloy | Color: | Customized |
| Size: | Customized | Application: | House |
| Position: | Garden | Name: | Aluminum Louver |
| High Light: | 6063 aluminum tube pergola,T5 aluminium pergola frame,T5 aluminum retractable pergola |
||

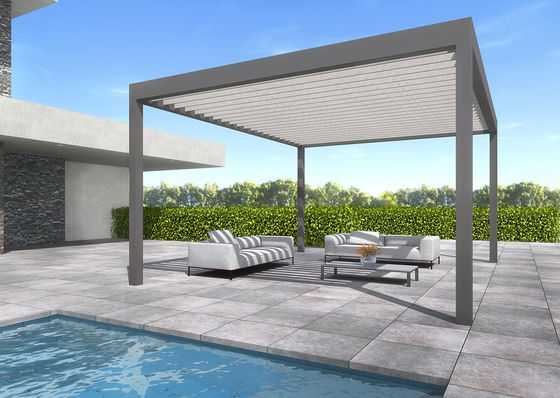

Modern garden designers aluminum extrusions aluminum pergola
|
Material
|
Aluminium alloy 6063 T5
|
|||
|
Optional Accessories
|
Side Screen/ LED Light/Wind & Rain Sensor/Heater,etc
|
|||
|
Rianfall Intensity
|
0.04-0.05L/S/m2
|
|||
|
Snow Load
|
UP to 120kg/m2
|
|||
|
Win Resistance
|
UP to 120km/h for closed blades
|
|||
|
Maximum Width
|
2.5m - 13.5m
|
|||
|
Maximum Projection
|
2.5m - 5.8m
|
|||
|
Electric Motor's Voltage
|
110V Or 230V
|
|||
|
Remote Control
|
1 Channel or 5 Channel
|
|||
|
Linear Strip LED Lights
|
3000K Yellow
|
|||
|
Max Size of Side Screen
|
5m x 3m
|
|||
|
Installation
|
The installation instruction or video will provided
|
|||
| Framework Main Beam | Extruded from 6063 Solid and Robust Aluminum Construction |
| Colors | RAL 7016 Anthracite Grey or RAL 9016 Traffic White or Customized Color |
| Internal Guttering | Complete with Gutter and Corner Spout for Downpipe |
| Louvres Blade | 202mm Aerofoil Available, Waterproof Effective Design |
| Blade End Caps | Highly Durable Stainless Steel #304, Coated Match Blade Colors |
| Other Componentries | SS Grade 304 Screws, Bushes, Washers, Aluminum Pivot Pin |
| Typical Finishes | Durable Powder Coated or PVDF Coating for Exterior Application |
| Application | Residential Buildings Patio ,Outdoor/Gazebo/Garden/pool |
| Motor Certification | IP67 testing report, TUV, CE, SGS,Rohs |
Pergola consists of aluminum profiles with a hard lamella roof (works on the principal of jalousie), also known as bioclimatic pergola.Depending on the model, the blades can only rotates or rotates and retracts to one side of the pergola, thus leaving the roof space free. Through the rotating blades, the air in the room can be freely ventilated, providing coolness and comfort to the users. Perfect solution for sun shading, at the same time reliability in wind, rain and *snow. Possibility of closing on all sides with wind protection PVC products, glass sliding systems, vertical glazing, screens and blinds, awnings and etc.Standard equipment:- columns and contour (gutters);- blades;- drainage system;- electric motor with remote control.Additional options: LED lighting; peripheral devices - sensor for sun, sensor for rain; heating appliances; PVC enclosures; glass enclosures; vertical blinds; awnings and etc.*depending on size of the product and location of the site For more information, please send an inquiry!
|
Specification
|
Size
|
Alu Wall Thickness
|
Surface Finishing and color
|
|
Blades
|
150 mm
|
2.0-2.5mm |
Powder Coating any RAL Color |
|
200 mm
|
|||
|
265 mm
|
|||
|
Post
|
150*150mm/100mm*100mm
|
3.0 mm
|
|
|
Beam
|
110*40 mm/161mm*40mm
|
2.0 mm
|
A pergola with retractable roof gives you excellent control over ventilation, cover, light and shade. For even more control, you can add integrated roller screens to the sides to create a new enclosed living space to entertain guests or relax. Choosing to add integrated LED lighting and outdoor heaters will ensure that you are able to use your pergola all year round, and not just during the warm summer months.
For added convenience, why not consider installing sun and wind sensors, so your pergola with retractable roof operates when you want it to without you lifting a finger.
What’s more, all Broadview pergolas come with a 5-year guarantee. So, in the unlikely circumstance that something is wrong with your product or installation, our team will resolve the issue for you, free of charge!
